spring security学习笔记一 -登录验证

概述

核心功能点：认证和鉴权

执行流程图：

Web 层中的 Spring Security是基于 Servlet 过滤器的，上面的图片显示了单个 HTTP 请求的处理程序的典型分层。

使用

1、添加Maven依赖

 <dependencies>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-data-jpa</artifactId>
            </dependency>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-security</artifactId>
            </dependency>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-web</artifactId>
            </dependency>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-thymeleaf</artifactId>
            </dependency>

            <dependency>
                <groupId>mysql</groupId>
                <artifactId>mysql-connector-java</artifactId>
                <!--<scope>runtime</scope>-->
            </dependency>
            <dependency>
                <groupId>org.projectlombok</groupId>
                <artifactId>lombok</artifactId>
                <optional>true</optional>
            </dependency>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-tomcat</artifactId>
                <scope>provided</scope>
            </dependency>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-test</artifactId>
                <scope>test</scope>
            </dependency>
            <dependency>
                <groupId>org.springframework.security</groupId>
                <artifactId>spring-security-test</artifactId>
                <scope>test</scope>
            </dependency>
        <dependency>
            <groupId>jakarta.persistence</groupId>
            <artifactId>jakarta.persistence-api</artifactId>
            <version>2.2.3</version>
        </dependency>

    </dependencies>

2、application.yml配置

spring:
  datasource:
    driver-class-name: com.mysql.cj.jdbc.Driver
    url: jdbc:mysql://xxxxx:3306/springboot_security?useUnicode=true&characterEncoding=utf-8&useLegacyDatetimeCode=false&serverTimezone=Asia/Shanghai&useSSL=false
    username: root
    password: 123456

  jpa:
    show-sql: true
    hibernate:
      ddl-auto: update

3、创建User类

package com.springboot.security.model;

import lombok.Getter;
import lombok.Setter;
import lombok.ToString;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.core.userdetails.UserDetails;

import javax.persistence.*;
import java.util.ArrayList;
import java.util.Collection;
import java.util.List;

/**
 * @Author: 向往
 * @Contact: 2457081614@qq.com
 * @Date: 2019/11/11 0011 21:40
 * @Version: 1.0
 * @Description:
 */
@Setter
@Getter
@ToString
@Entity
@Table(name = "user_role")
public class User implements UserDetails {
    static Logger log = LoggerFactory.getLogger(User.class);
    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    long id;
    @Column(name = "user_name")
    String userName;
    @Column(name = "user_pass")
    String userPass;
    @ManyToMany(cascade = {CascadeType.REFRESH}, fetch = FetchType.EAGER)
    List<UserRole> roles;

    @Override
    public Collection<? extends GrantedAuthority> getAuthorities() {
        List<GrantedAuthority> grantedAuthorities = new ArrayList<>();
        List<UserRole> roles = this.getRoles();
       /* for (UserRole userRole:roles) {
            grantedAuthorities.add(new SimpleGrantedAuthority(userRole.getRoleName()));
        }
        log.info("grantedAuthorities===>" + grantedAuthorities.toString());*/
        return grantedAuthorities;
    }

    private List<UserRole> getRoles() {
        return null;
    }

    @Override
    public String getPassword() {
        return this.userPass;
    }
    @Override
    public String getUsername() {
        return this.userName;
    }
    @Override
    public boolean isAccountNonExpired() {
        return true;
    }
    @Override
    public boolean isAccountNonLocked() {
        return true;
    }
    @Override
    public boolean isCredentialsNonExpired() {
        return true;
    }
    @Override
    public boolean isEnabled() {
        return true;
    }
}

4、创建repository

package com.springboot.security.repository;

import com.springboot.security.model.User;
import org.springframework.data.jpa.repository.JpaRepository;

public interface UserRepository extends JpaRepository<User, Long> {
    User findByUserName(String userName);
}

5、service

package com.springboot.security.service;

import com.springboot.security.model.User;
import com.springboot.security.repository.UserRepository;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;

/**
 * @Author: 向往
 * @Contact: 2457081614@qq.com
 * @Date: 2019/11/11 0011 21:46
 * @Version: 1.0
 * @Description:
 */
/*@Service
@Slf4j*/
public class UserService  implements UserDetailsService {

    static Logger log = LoggerFactory.getLogger(UserService.class);

    @Autowired
    UserRepository userRepository;

    @Override
    public UserDetails loadUserByUsername(String userName) throws UsernameNotFoundException {
        log.info("param--userName===>" + userName);
        User user = userRepository.findByUserName(userName);
        if(user == null){
            log.info("user===>" + user);
            throw new UsernameNotFoundException("用户名不存在");
        }
        log.info("userName===>" + user.getUsername());
        log.info("userPass===>" + user.getPassword());
        return user;
    }
}

6、配置类

package com.springboot.security;

import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.ViewControllerRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;

/**
 * @Author: 向往
 * @Contact: 2457081614@qq.com
 * @Date: 2019/11/11 0011 21:59
 * @Version: 1.0
 * @Description:
 */
@Configuration
public class WebMvcConfig implements WebMvcConfigurer {
    @Override
    public void addViewControllers(ViewControllerRegistry registry) {
        registry.addViewController("/login").setViewName("login");
    }
}

package com.springboot.security;

import com.springboot.security.service.UserService;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.crypto.password.NoOpPasswordEncoder;

/**
 * @Author: 向往
 * @Contact: 2457081614@qq.com
 * @Date: 2019/11/11 0011 21:47
 * @Version: 1.0
 * @Description:
 */
@Configuration
@EnableWebSecurity
public class WebSecurityConfig extends WebSecurityConfigurerAdapter {
    @Bean
    UserDetailsService userService(){
        return new UserService();
    }

    @Override
    protected void configure(AuthenticationManagerBuilder auth) throws Exception {
        auth.userDetailsService(userService());
    }
    //已弃用
    @Bean
    public static NoOpPasswordEncoder passwordEncoder() {
        return (NoOpPasswordEncoder) NoOpPasswordEncoder.getInstance();
    }
    @Override
    protected void configure(HttpSecurity http) throws Exception {
        http.authorizeRequests()
                .anyRequest()
                .authenticated().and()
                .formLogin()
                .loginPage("/login")
                .failureUrl("/login?error")
                .permitAll().and()
                .logout()
                .permitAll();

    }
}

测试

启动项目后，在数据库添加数据后进行访问 localhost:8080/login,输入账号密码后跳转之Index.html界面。

认证源码初析

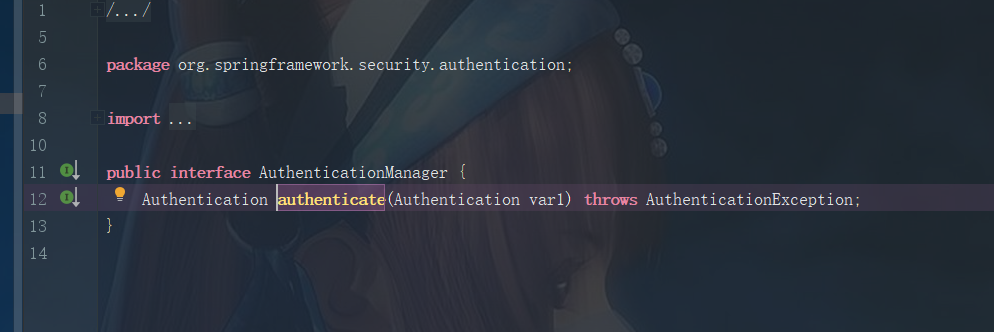

AuthenticationManager这个接口是认证的入口。

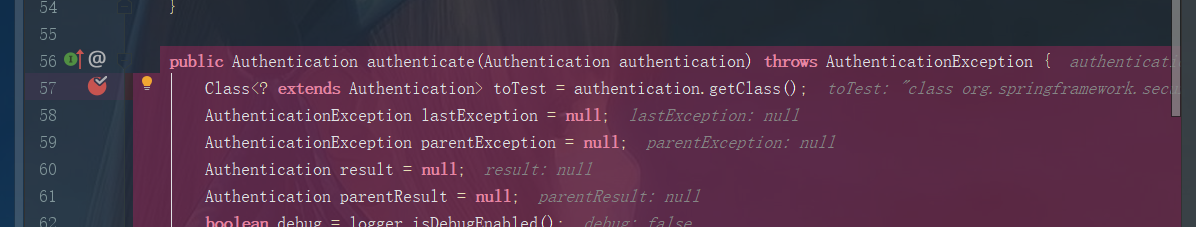

ProviderManager实现了该类，在这里偷偷摸摸打个断点。

 public Authentication authenticate(Authentication authentication) throws AuthenticationException {
        // #1 获取认证类型
        Class<? extends Authentication> toTest = authentication.getClass();
        AuthenticationException lastException = null;
        AuthenticationException parentException = null;
        Authentication result = null;
        Authentication parentResult = null;
        boolean debug = logger.isDebugEnabled();
        Iterator var8 = this.getProviders().iterator();

        while(var8.hasNext()) {
           // 遍历provider看是否有支持的类型，有就认证
            AuthenticationProvider provider = (AuthenticationProvider)var8.next();
            if (provider.supports(toTest)) {
                if (debug) {
                    logger.debug("Authentication attempt using " + provider.getClass().getName());
                }

                try {
                    result = provider.authenticate(authentication);
                    if (result != null) {
                        this.copyDetails(authentication, result);
                        break;
                    }
                } catch (InternalAuthenticationServiceException | AccountStatusException var13) {
                    this.prepareException(var13, authentication);
                    throw var13;
                } catch (AuthenticationException var14) {
                    lastException = var14;
                }
            }
        }
        // 上面没有验证，由父类AuthenticationManager进行验证
        if (result == null && this.parent != null) {
            try {
                result = parentResult = this.parent.authenticate(authentication);
            } catch (ProviderNotFoundException var11) {
            } catch (AuthenticationException var12) {
                parentException = var12;
                lastException = var12;
            }
        }

        //是否擦除敏感信息
        if (result != null) {
            if (this.eraseCredentialsAfterAuthentication && result instanceof CredentialsContainer) {
                ((CredentialsContainer)result).eraseCredentials();
            }

            if (parentResult == null) {
                this.eventPublisher.publishAuthenticationSuccess(result);
            }

            return result;
        } else {
            if (lastException == null) {
                lastException = new ProviderNotFoundException(this.messages.getMessage("ProviderManager.providerNotFound", new Object[]{toTest.getName()}, "No AuthenticationProvider found for {0}"));
            }

            if (parentException == null) {
                this.prepareException((AuthenticationException)lastException, authentication);
            }

            throw lastException;
        }
    }

spring security已经实现的provider:

我们找个AbstractUserDetailsAuthenticationProvider类源码，查看具体的认证流程。

 public Authentication authenticate(Authentication authentication) throws AuthenticationException {
// 判断类型是否支持
Assert.isInstanceOf(UsernamePasswordAuthenticationToken.class, authentication, () -> {
            return this.messages.getMessage("AbstractUserDetailsAuthenticationProvider.onlySupports", "Only UsernamePasswordAuthenticationToken is supported");
        });
        String username = authentication.getPrincipal() == null ? "NONE_PROVIDED" : authentication.getName();
       // 判断是否缓存
        boolean cacheWasUsed = true;
        UserDetails user = this.userCache.getUserFromCache(username);
        if (user == null) {
            cacheWasUsed = false;

            try {
               //获取用户信息
                user = this.retrieveUser(username, (UsernamePasswordAuthenticationToken)authentication);
            } catch (UsernameNotFoundException var6) {
                this.logger.debug("User '" + username + "' not found");
                if (this.hideUserNotFoundExceptions) {
                    throw new BadCredentialsException(this.messages.getMessage("AbstractUserDetailsAuthenticationProvider.badCredentials", "Bad credentials"));
                }

                throw var6;
            }

            Assert.notNull(user, "retrieveUser returned null - a violation of the interface contract");
        }

        try {
            //校验
            this.preAuthenticationChecks.check(user);
            this.additionalAuthenticationChecks(user, (UsernamePasswordAuthenticationToken)authentication);
        } catch (AuthenticationException var7) {
            if (!cacheWasUsed) {
                throw var7;
            }

            cacheWasUsed = false;
            user = this.retrieveUser(username, (UsernamePasswordAuthenticationToken)authentication);
            this.preAuthenticationChecks.check(user);
            this.additionalAuthenticationChecks(user, (UsernamePasswordAuthenticationToken)authentication);
        }

        this.postAuthenticationChecks.check(user);
        if (!cacheWasUsed) {
            this.userCache.putUserInCache(user);
        }

        Object principalToReturn = user;
        if (this.forcePrincipalAsString) {
            principalToReturn = user.getUsername();
        }

        return this.createSuccessAuthentication(principalToReturn, authentication, user);
    }

学习参考：
baeldung
官方文档
源码地址
